SWITCH UNIVERSAL 35020-MY6-670, HONDA XR650L TYPE, KS12-0046

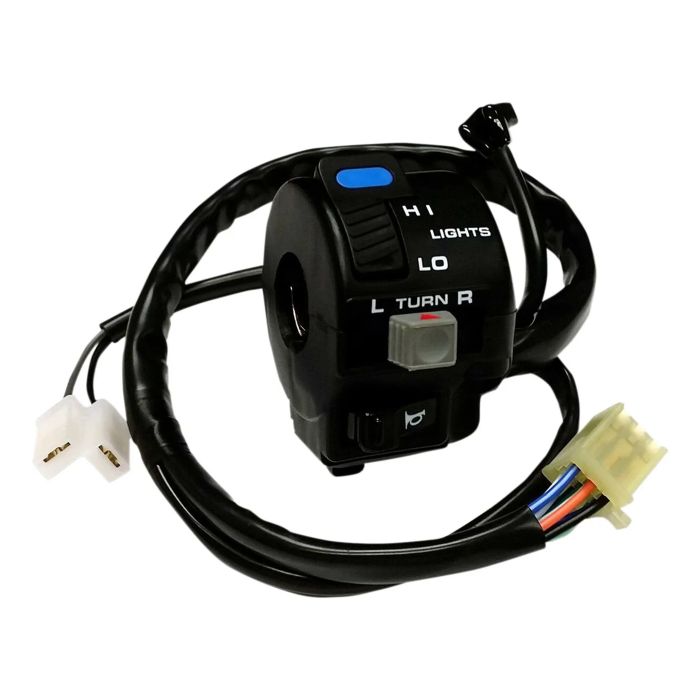

K&S Technologies 44-793 is a universal XR-650L type handlebar switch assembly used to control turn signals, headlight beam selection and horn operation from the handlebar.

Features

Controls left and right turn signals
Centre push cancellation for turn signal operation
Controls headlight high and low beam selection
Includes horn control
Supplied with matching 9-pin connector extension lead
Specifications

Fits 7/8 in handlebars
Width: 45 mm
Height: 64 mm
Depth: 55 mm
Voltage range: 10–14 V
Main wire length: 15.5 in (39.37 cm)
Connector: 9-pin wire connector
Extension wire length: 6.5 in (16.5 cm)
Extension connector: matching 9-pin connector
Cross-Reference OEM Part Numbers

35020-MY6-670
